110*45*82 aluminum alloy case 105*22*46 thick paper box
1 - 10
To be negotiated
12 Inch Screen 1064 nm / 532nm Varicose Veins Laser Treatment New Laser For Tattoo Removal
Full Series Professional tattoo & Pigment lesions solution

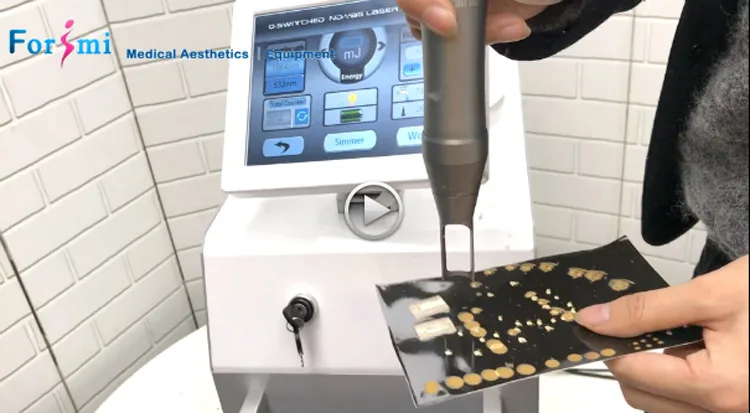

Check the Test Video Shorter Pulse width (crisp sound) & higher energy (loud sound) & Round Spot(average output)
As Quality Based manufacturer self Research & Develop the Nd yag laser with many design details • 12 Inch full touch LCD display screen, 270° Rotatable • Air Blowing pipe to offer better protection for the mirror • Korea Lab 7 articular-arm of light guide tranmitter • Full Metal Case material & push metal handle
Treatment Principle:Q-switching Laser is a technique by which a Laser machine delivers very short pulses (8ns) at very high peak power(hundreds of Mega W) granting the most efficient photoacoustic effect, with no thermal interaction with tissues.As a result, the unwanted pigments of the skin are fragmented in small particles that are expelled through phagocytosis.
1064 nm and 532 nm laser wavelengths are absorbed by natural chromophores in tattoo ink. They are indicated for tattoo removal.The 1064nm is suggested for dark blue and black ink and the 532nm is suggested for red, orange, yellow, and purple ink.
Light pulses target melanin at variable depth on or in the skin for Pigmented lesions • Can be used to remove brown age spots (solar lentigines), freckles, naevus of Ota, naevus of Ito, mongolian spots, Hori naevus and café-au-lait-macules.
The laser light pulses target red pigment (haemoglobin) • Can be used to remove spider and thread veins in the face (cheek, temporal region, nasal dorsum, forehead) and legs. • Some vascular birthmarks (capillary vascular malformations) • Varicose veins in the leg • Facial veins (telangiectasis) • Haemangiomas (vascular tumours) in the face and around the mouth
1064nm/532nm ;(option 585nm/650nm/755nm)
Laser output method
Electro Optic Q-switch ; Long pulse width
Flat Hat Mode (back-cavity mirror)
4ns(Q-switch mode) ;300 μs(long pulse mode)
Solid State >3000mj
Single pulse energy 1200mj(1064nm) ,600mj(532nm) ,300mj(585nm,650nm)
2-10mm adjustable (circle origin)
Guiding beam arm
Korea Lab Seven-joints articulated arm
External, Auto-calibration & Self-restoration
650nm red diode laser ;adjustable off/on
12 inch 270 ° flexible
AC100-120V or AC220-230V, (Fuse 125V/25A or 250V/15A), 50/60Hz,
Closed-off Water cooling+wind cooling
*Korea lab toppest laser stable & Average output spot , flat hat maximam reduce the hurt to skin *Germen Soest Flexible spindle easier your view from any version *USA Lambda Laser ink heads optional , 585nm,650nm ,755nm.. meet your professional requirement for any color

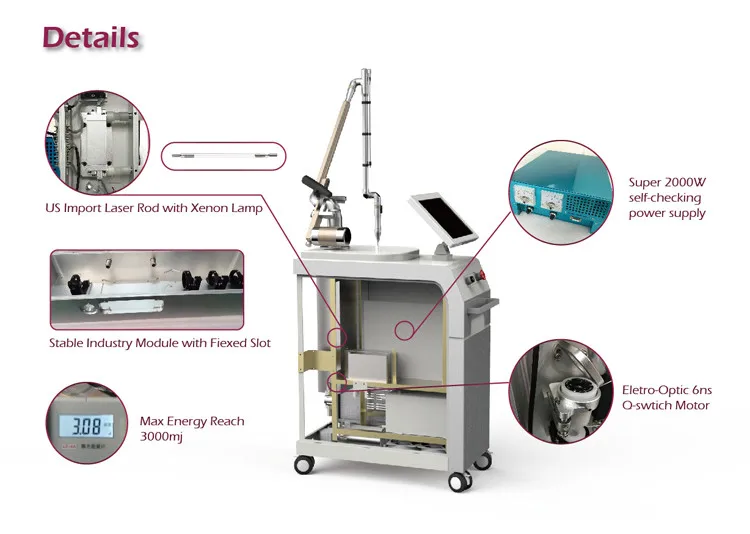

*US original Laser Xenon Lamp support its more shoots . *Industry module arranged lens & parts raise the stability *Energy isn't the problem ! single pulse max reach 3000mj *2000W independent Laser power stable & durable *Stable 6ns Qswitch motor , oscilloscope could prove!

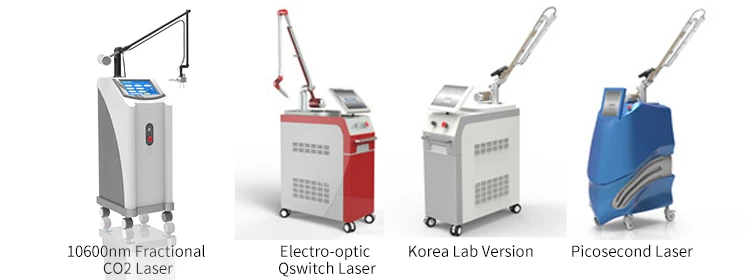

Compare With other Q-switch nd yag laser:
Over 12 years producing experience, Beijing Forimi S&T Co,Ltd is a manufacturer for Laser and Light based medical aesthetic equipments. Factory Cover 2000 square meterswith professional R&D, production, distribution and service team .Manufacturing process and quality assurance are under strict standard of ISO9001 and ISO13485 . we aim to give high quality products with the advanced technology ,unique designs, powerful function and efficient services to beyond customer’s satisfaction.
Forimi derive from Chinese name “FuLimei”, mean to offering beauty and healthy to people. We hope to bring customer a scientific, fashionable beauty lifestyle
